YANGZHOU, JIANGSU, CHINA, September 17, 2026 /EINPresswire.com/ -- International airport aprons, container shipping ports, freight rail terminals, and sports stadiums span expansive acreage requiring high-lumen, glare-free illumination to guarantee continuous round-the-clock operations and worker safety. Conventional fixed high-mast towers demand costly crane rentals and pose significant safety risks during routine high-altitude luminaire servicing. To address high-altitude maintenance hazards and deliver uniform wide-area ground illuminance, Yangzhou Tianxiang Road Lamp Equipment Co., Ltd. (TX Solar / Tianxiang Group) manufactures engineered heavy-duty automatic lift high mast lighting systems ranging from 15 to 45 meters in height. Established in 2008, TX Solar integrates polygonal steel masts, motorized raising and lowering gearboxes, and precision optical floodlights to power major international infrastructure projects across more than 20 countries.

High-Altitude Maintenance Challenges and Automatic Lift Mechanisms
Maintaining luminaire arrays on towers above 20 meters presents significant operational complexity for facility managers. Conventional fixed high-mast structures require specialized hydraulic cranes or external ladder climbs for routine inspection. TX Solar solves aerial maintenance demands by integrating motorized automatic raising and lowering systems inside the mast. The motorized winch mechanism raises and lowers the luminaire ring smoothly at controlled speeds. When the ring reaches ground level, maintenance technicians perform lamp servicing, driver adjustments, and lens cleaning safely. When raised to the operational apex, automatic mechanical latches lock the luminaire ring firmly onto the mast head. This mechanical lock transfers structural weight directly to the steel tower. The locking mechanism unloads constant tension from the internal hoisting cables. Ground servicing eliminates aerial equipment rental and enhances maintenance speed. Facilities achieve continuous illumination without recurring high-altitude maintenance overhead.

Multi-Tier Mechanical Safety Systems and Braking Protection
Lifting heavy luminaire clusters containing dozens of high-power fixtures requires multi-stage mechanical safety engineering. TX Solar equips its automatic lift high-mast towers with dual electromagnetic braking systems and positive mechanical stops. The electromagnetic brake engages instantly whenever electrical power stops, preventing uncommanded carriage descent. The hoisting assembly incorporates specialized anti-slack arrest devices. These safety mechanisms immediately clamp the internal carriage if cable tension fluctuates unexpectedly. Heavy-duty stainless steel hoisting cables provide generous safety factors matching international lifting standards. In the event of a facility power interruption, technicians can operate the winch system manually using an auxiliary hand crank. This multi-tier safety architecture ensures dependable mechanical security during raising, lowering, and stationary operation. Independent safety catches protect ground personnel and equipment throughout the entire maintenance process.

Heavy-Duty Structural Column Engineering and Wind Resistance

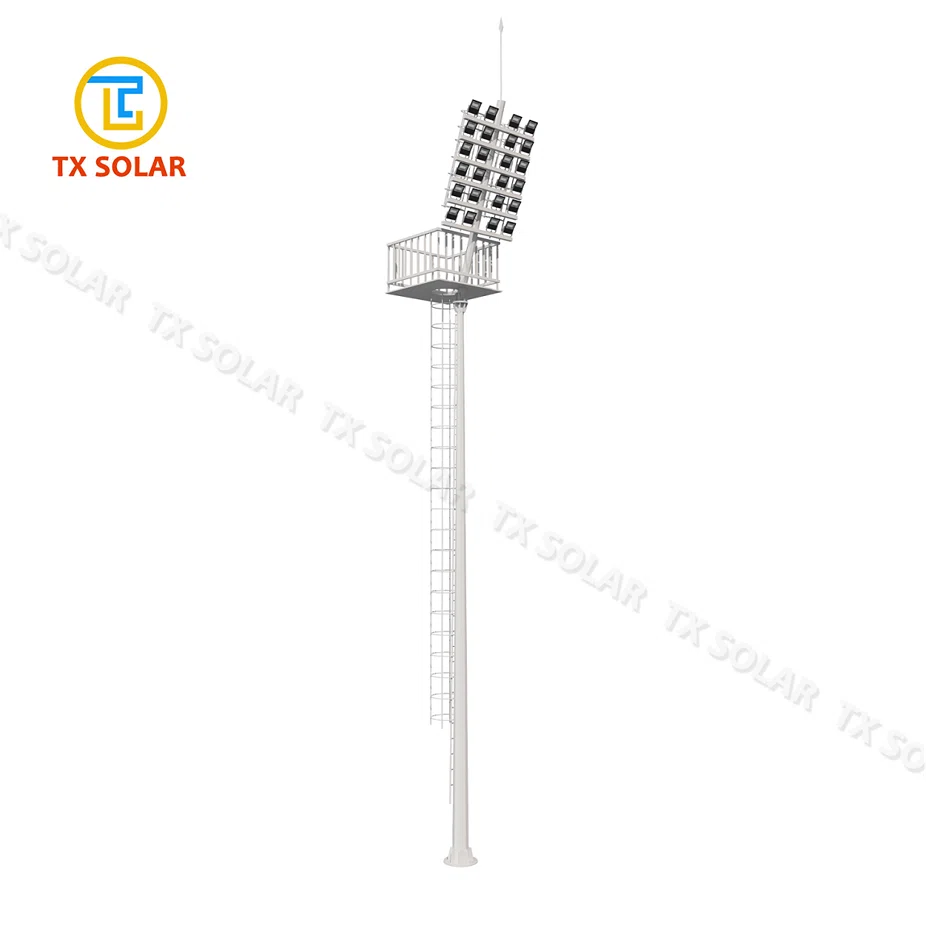

High-mast towers must maintain structural rigidity under intense upper-level wind pressures and dynamic meteorological forces. TX Solar fabricates structural columns from certified Q235, Q345, Q460, and high-tensile structural steel. Multi-sided polygonal profiles featuring 12, 16, or 20 sides maximize sectional stiffness against multi-directional gusts. Standard towers are fabricated in modular telescopic slip-fit sections for efficient transport and rapid field assembly. Overlapping slip-fit joints undergo precision hydraulic pressing to ensure tight structural locking. Both internal and external surfaces receive complete hot-dip galvanizing followed by electrostatic polyester powder coating. Standard production models maintain structural stability up to Force 10 wind speeds (~25 m/s). Where project specifications demand fixed climb access across major logistics yards, industrial shipping ports, or heavy terminal arteries, optional configurations from 20 to 60 meters can integrate external safety cage ladders and intermediate rest platforms. For coastal installations subject to severe typhoons, structural columns and anchor base assemblies can be custom-reinforced to withstand Force 12 storm conditions (~33 m/s).

High-Power LED Floodlight Photometrics and Wide-Area Optical Coverage
Vast commercial facilities demand balanced horizontal and vertical lux levels while avoiding glare that impedes pilots, equipment operators, or athletes. TX Solar equips its high-mast arrays with industrial LED floodlights across scalable outputs, with individual luminaire power custom-configurable from 150W up to 2000W to match project-specific ground lux targets. Photometric coverage scales with tower height: standard 15-meter masts provide an effective lighting radius of 20 to 30 meters for municipal highway junctions and commercial parking plazas; 25-meter systems illuminate 40 to 60 meters across logistics container yards; and heavy-duty 30-meter-plus installations cast wide-area coverage up to 60 to 80 meters for airport aprons, public transport squares, and regional sports stadiums. Photometric engineers run site-specific DIALux simulations to calculate optimal tilt angles and beam spreads. For competition arenas, selected narrow-beam floodlight modules deliver long-throw optical projection with uniform field lux. Die-cast aluminum housings ensure low junction temperatures, while custom visor shields eliminate upward glare across sensitive flight paths and municipal corridors.

Intelligent Power Distribution and Multi-Circuit Control Management
Managing power delivery across high-tonnage luminaire arrays requires sophisticated electrical distribution circuitry. TX Solar designs dedicated electrical control cabinets with independent circuit branch protection and surge suppression devices. The lighting control architecture supports multi-stage automated scheduling via photocell sensors and programmable digital timers. Facility operators can activate distinct lighting stages matching operational intensity. In airport cargo hubs, systems deliver peak-load illumination during active aircraft turnaround windows. Operators shift smoothly to energy-saving illumination during quiet holding periods. This zoned power management optimizes energy consumption while preserving vital security illumination. In sports complexes, multi-circuit switching allows instant transitions between competition broadcast lux levels and recreational practice modes. Centralized distribution panels simplify routine power monitoring across extensive industrial yards.

Direct Factory Engineering and International Tender Support
Sourcing high mast lighting systems directly from an established vertically integrated manufacturer guarantees multi-decade structural integrity, precise electrical coordination, and optimal commercial value. Operating a 62,000 square meter manufacturing base equipped with over 220 advanced metalworking machines, TX Solar fabricates heavy-duty polygonal towers, automatic lift winch gearboxes, and optical floodlight fixtures in specialized in-house workshops. Backed by 16 senior engineering specialists and 63 technical patents, the technical department provides comprehensive DIALux photometric calculations, wind load structural simulations, and foundation anchor cage designs for international infrastructure tenders. Before dispatch, quality assurance inspectors conduct 16 rigorous functional and safety tests on every lifting carriage and structural section. Having supplied over 1,700,000 lighting assemblies globally, TX Solar delivers proven manufacturing capacity, direct factory pricing, and full-lifecycle engineering support for major transport and industrial contracts.
Port and stadium infrastructure authorities can obtain high mast engineering blueprints, motorized winch technical datasheets, and foundation cage layouts via the official TX Solar portal. Connect directly with our high-mast technical engineering team at https://www.txzmlamp.com/.
