The Evolution toward Dynamic Optical Layer Architecture
Traditional optical networks relied on Fixed Optical Add-Drop Multiplexers (FOADMs), where specific wavelengths were hardwired to predetermined physical drop ports. While FOADMs provided reliable point-to-point transmission, scaling or reconfiguring wavelength paths required manual physical intervention on-site, leading to operational delays and increased labor costs.
The integration of ROADM technology transformed optical transport by enabling software-controlled wavelength routing. Modern multi-degree ROADM nodes utilize advanced WSS components to dynamically steer light across multiple direction vectors. This evolution allows operators to adapt to shifting traffic patterns driven by cloud computing, artificial intelligence workloads, and high-density data center traffic. To achieve maximum optical layer agility, ROADM architectures have progressively adopted Colorless, Directionless, Contentionless, and Flex-Grid (CDC-F) capabilities, requiring WSS modules with precise optical control and robust physical craftsmanship.
Technical Analysis on Reconfigurable ROADM Network Architectures by HTF
To address the demanding performance requirements of modern optical transport layers, optical system designers must analyze the underlying mechanical, optical, and electrical engineering principles of core switching hardware. The following technical analysis evaluates the structural architecture and functional capabilities of ROADM deployments powered by HTF optical solutions.
Analysis I: Optical Switching Principles and Wavelength Routing Dynamics
At the core of the ROADM architecture is the ability to independently manage individual optical signals across the C-band and extended C+L bands. WSS technology accomplishes this by combining diffraction grating optics with micro-optical switching elements, such as Liquid Crystal on Silicon (LCoS) phase arrays or Micro-Electro-Mechanical Systems (MEMS) micro-mirror matrices.
Diffraction and Dispersion Handling: Incoming multi-wavelength DWDM signals enter through an input fiber port, where an internal optical grating spatially disperses the light into individual wavelength channels.
Independent Spatial Steering: Each dispersed wavelength channel is directed onto a dedicated element of the spatial light modulator. By adjusting phase delays or physical tilt angles, the WSS selectively routes any input wavelength to any output port.
Dynamic Channel Equalization: In addition to spatial switching, the switching array offers per-channel optical power attenuation. This feature allows real-time optical power balancing across all active channels, compensating for amplifier gain tilt and fiber attenuation variations across long spans.
Analysis II: Structural Engineering and Craftsmanship of the HT6800-WSS09

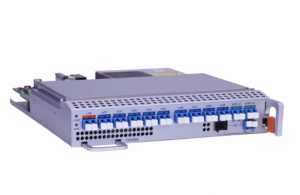

Physical build quality and precision assembly directly impact optical performance parameters, including insertion loss, polarization-dependent loss (PDL), and optical return loss (ORL). A representative example of precision optical integration is the Twin 1x9 Wavelength Selective Switch HT6800-WSS09.
Dual-Module Density: The HT6800-WSS09 integrates two independent 1x9 WSS functional units within a single compact module slot. This high-density architecture enables two-degree ROADM node implementation or directional drop-structure integration within half the physical rack footprint.
Precision Hermetic Packaging: The module utilizes advanced hermetic sealing techniques to isolate internal optical components from ambient humidity, dust, and micro-vibrations. Precision alignment of micro-lenses and optical gratings ensures long-term optical path stability across extended operating temperature ranges.
Low Insertion Loss and High Isolation: Engineering optimization of internal optical paths yields low insertion loss characteristics, minimizing the need for secondary amplification stages. Furthermore, adjacent channel optical isolation exceeds standard industry benchmarks, preventing crosstalk during dense DWDM channel packing.
Analysis III: System Integration and Amplification Co-Design within the HT6800 Platform

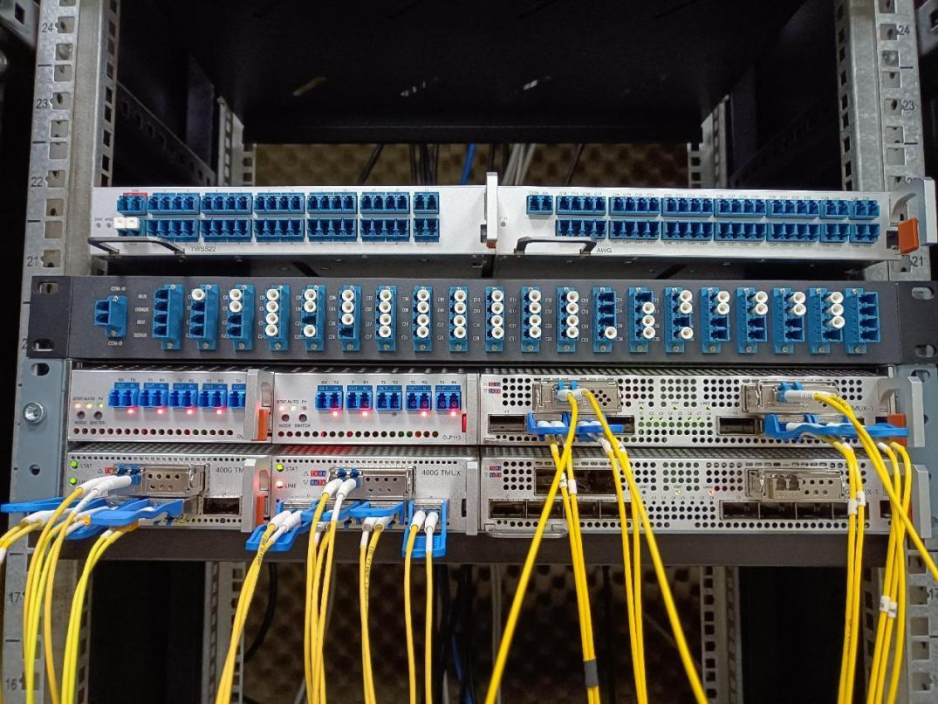

A WSS module does not operate in isolation; its performance depends on integration within a broader optical transport ecosystem. The HT6800 platform integrates WSS switching sub-systems with complementary optical components to form a unified optical transport node.
Co-Design with Erbium-Doped Fiber Amplifiers (EDFA): Optical signals passing through ROADM nodes incur passive losses from multiplexing, demultiplexing, and optical switching. HTF integrates low-noise-figure EDFAs alongside the HT6800-WSS09, ensuring optimal Optical Signal-to-Noise Ratio (OSNR) management across multi-span optical links.
Integrated Optical Line Protection (OLP): For mission-critical communications, the WSS layer works in tandem with automated OLP modules, enabling sub-50ms protection switching in the event of fiber cuts or primary path degradation.
Dispersion and Health Monitoring Integration: System slot configurations allow seamless pairing with dispersion compensation modules (DCM) and embedded Optical Time Domain Reflectometer (OTDR) cards, enabling real-time fiber link diagnosis without interrupting active channel traffic.
Analysis IV: Flex-Grid Granularity and CDC ROADM Scalability
As network transmission speeds advance from 100G/200G to 400G, 800G, and beyond, fixed 50GHz or 100GHz ITU-T grid spacing becomes a bottleneck. Higher baud rate signals require wider spectral channels to maintain signal integrity.
Flex-Grid Spectrum Allocation: The HT6800-WSS09 supports flexible grid spectrum allocation, allowing operators to adjust channel bandwidths in fine increments (such as 6.25GHz or 12.5GHz steps). This capability maximizes spectral efficiency, allowing mixed-data-rate channels to co-exist on the same physical fiber.
Colorless, Directionless Add-Drop Networks: Integrating multi-port WSS blocks allows transceivers to be assigned to any wavelength (Colorless) and routed to any egress direction (Directionless). This architecture eliminates manual patch-panel reconfigurations during service expansion or disaster recovery re-routing.
Analysis V: Reliability Validation, TCO Optimization, and Operational Economics
Deploying advanced ROADM infrastructure requires a balance between initial capital expenditures (CAPEX) and ongoing operational expenditures (OPEX). High-reliability hardware reduces field failures, service truck rolls, and spare parts inventory costs.
Environmental and Stress Testing: HTF subjects optical hardware to rigorous burn-in cycles, thermal shock tests, and mechanical vibration screening. These processes ensure compliance with international quality and safety benchmarks, delivering predictable operational lifespans in demanding environments.
Energy Efficiency and Space Optimization: The compact form factor and optimized power footprint of the HT6800-WSS09 reduce equipment rack space and cooling requirements within internet data centers (IDC) and remote central offices.
Simplified Maintenance and Remote Provisioning: Centralized software control allows network engineers to configure optical paths, re-balance channel powers, and execute diagnostic sweeps remotely, significantly reducing manual maintenance overhead.
End-to-End Optical Ecosystem and Customization Collaboration
Building a reliable optical network requires cohesive integration across all network layers. In addition to specialized WSS and ROADM solutions, comprehensive optical system manufacturing encompasses DCI box platforms, optical amplifiers, dispersion compensators, and high-speed transceivers, including 100G QSFP28, 400G QSFP-DD, and 800G OSFP modules tailored for AI and cloud computing workloads. Furthermore, customized MPO fiber cabling solutions ensure high-density physical connectivity across optical distribution frames.
Beyond standardized equipment delivery, flexible customization collaboration models allow partners to address specific regional or architectural requirements. Engineering teams with over a decade of R&D experience assist telecom operators, Internet Service Providers (ISPs), electric power utilities, educational networks, broadcasting entities, and cloud data centers in designing optimized WDM systems.
Conclusion
As optical transport networks expand to support data-intensive applications, the deployment of reliable, reconfigurable optical node architectures becomes essential. Technical analysis of ROADM architectures demonstrates that high-performance WSS modules—exemplified by precision-engineered devices like the HT6800-WSS09—provide the optical agility, spectral efficiency, and operational stability required for modern communication backbones. By combining robust micro-optical engineering, system-level co-design, and flexible customization capabilities, optical solution providers enable operators to build resilient, future-ready transport networks.
To explore detailed product specifications and systematic WDM network solutions, visit official website: https://htfuture.com/
